Engineered for long Life

NOTHING WORKS AS HARD AS A REITNOUER.

When Reitnouer introduced its first totally bolted aluminum flatbed trailer in 1982, it revolutionized the industry. With its innovative two- piece main beam construction and a whole host of breakthrough features, including a tapered beam design to optimize strength and weight and safety tread deck, the Reitnouer Aluminum Flatbed quickly became the standard against which all other flatbeds were measured. Today, Reitnouer continues its tradition of leadership and innovation — the design of choice for drivers everywhere and the standard by which all other trailers are measured.

Extruded of high tensile, 6061 T6 aluminum alloy, the bottom rail on a Reitnouer is flat, while the top rail is arched. Then the two pieces are bolted in the center (along the neutral axis), eliminating any bolting or welding at the flanges, where beam stresses are the greatest. Next, we add solid one-piece alloy cross members. These redesigned cross members have an offset web for more torsional resistance. They are also reinforced between the main rails (where additional strength is needed for coil hauling) with a dual web design. Another Reitnouer first! Plus, an inner flange is extruded to the main beam, so the load forces are distributed over an even greater area; and three-piece floating outriggers minimize the stress on the main beam.

Add to that Reitnouer’s rail overlap reinforcement at the neck area. This innovative design provides more meat where it’s needed most- at the fifth wheel. The landing gear is tied to four cross members for greater load distribution and stability, and the suspension features a “box-type” support mounting for maximum strength. Long “J” shaped mounting brackets distribute load forces over a much larger area than conventional designs, and suspensions and fifth wheel plates are powder coated for optimal corrosion protection.

Reitnouer flatbeds have a unique Safety-Tread Deck so that pallets bite in and drivers don’t slip while walking on the deck. And since a trailer’s corners take such a pounding, we use solid extruded corners that are extremely heavy-duty. The rear bumper design exceeds DOT standards. Its three-piece design is bolted, allowing easy repair or replacement – an extremely important feature since owners are now required to maintain these bumpers in the original condition and design to ensure long-term DOT strength requirements.

Features and Innovations
At A Glance

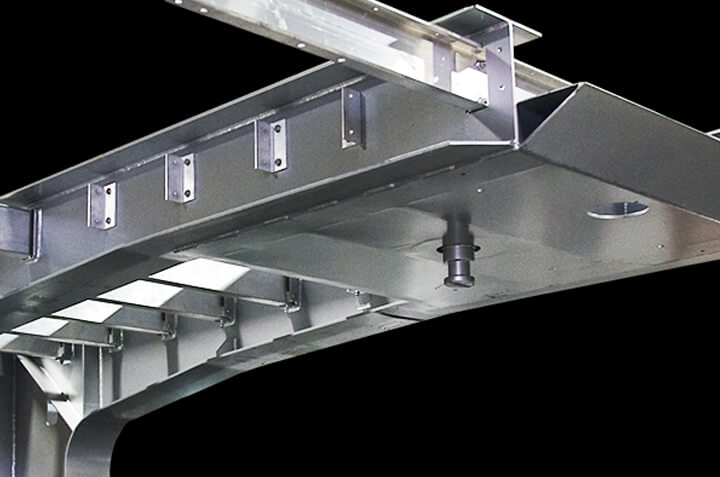

The steel goose neck of all DropMiser trailers is T-1 alloy to optimize weight and strength.

Solid one-piece cross members are designed with an offset web and a unique, reinforced inner extrusion that adds reinforcement between the main beams.

Innovative snap-in floor enables the floor to become part of the main beam (patent pending). In addition, the extruded inner flange allows cross member stress to be distributed over a much larger area.

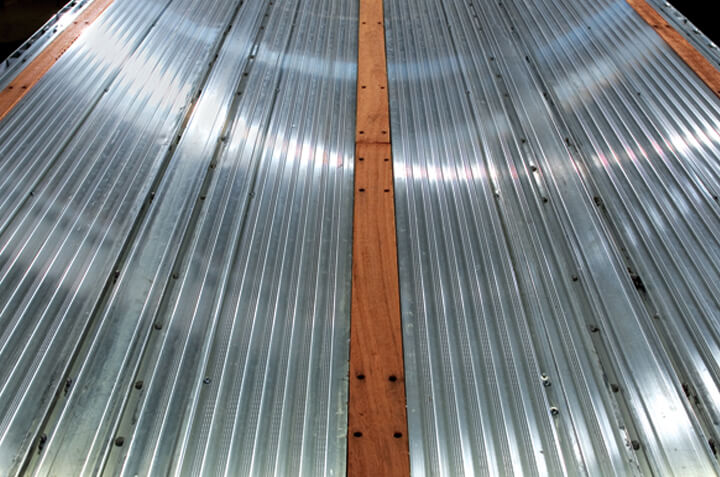

Standard three wood nailers offer the versatility you need to properly secure loads. Optional four wood nailers or four wood nailers with a center tie-down track is the setup for hauling coils or other loads where additional wood or tie-downs are needed.

Reitnouer’s unique two-piece bolted and bonded main beam is joined in the center, where stresses are minimal. Three-piece floating outriggers minimize the stress on the main beam.

Snap-in pockets offer superior strength in the pocket-to-side rail connection.

Movable, removable tie-downs come in various lengths and allow you to secure loads either along the side rails or along the main rails-or both.

Two-piece load levelers for the DropMiser offer lighter weight handling and placement anywhere along the trailer deck.

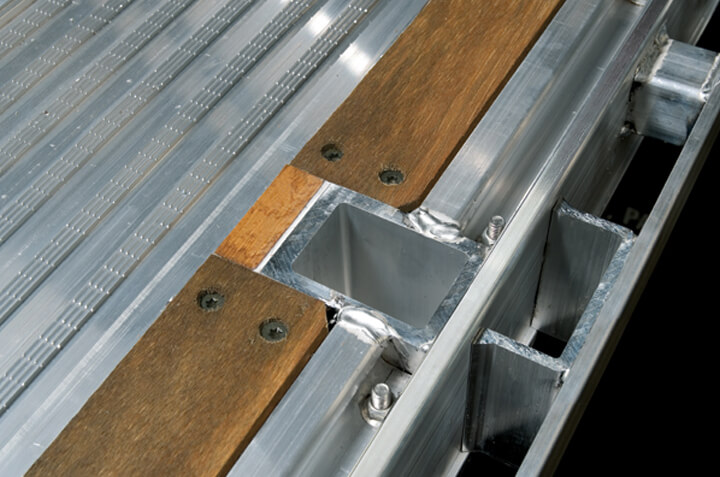

Optional log pockets enable use of heavy duty stakes to secure logs. The number of pockets and pocket locations can be tailored to customer specifications.

Solid coil racks eliminate the need for wood and optimize safety by locking into the main beams, preventing coils from sliding side to side.

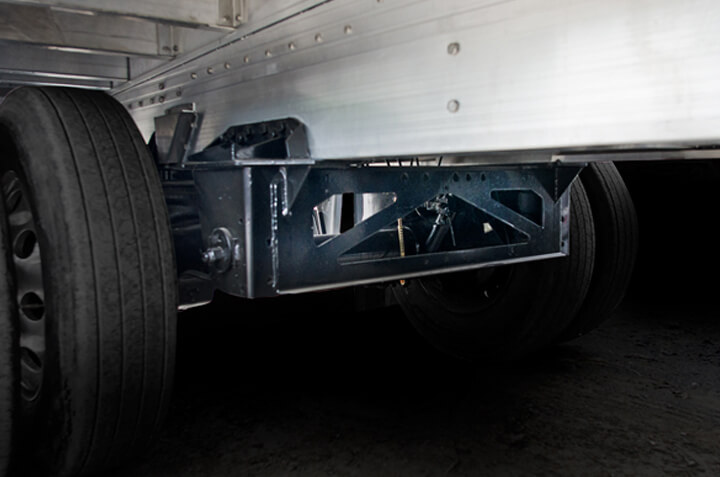

Suspension hanger boxes feature a Reitnouer patented clamp-mount design and are boxed in from side-to-side to minimize the stresses that are transferred to the main rails.

Patented coil blocks offer more portability and ease of storage, but still offer the “locked-in” safety of the larger solid coil racks.

The rear end of Reitnouer trailers incorporates suggestions made by the people who use our trailers every day. The corners have been made stronger, the light panels are protected top and bottom, the rear bumper is one piece and fully enclosed, and horizontal bumpers were added for those dock plates pushed up by the rear of the trailer.

Reitnouer trailers feature the finest
and most advanced wiring and lighting systems available. All wiring harness connections are Packard type, the finest and most corrosion-resistant in the industry. No detail was spared on your lighting requirements.

Most Popular Options
At A Glance

Axles - Disk Brakes

Flatbed
Part Numbers: 23K, 25K, 30K; 230L, 250L, 300L

Drop Deck
Part Number: 250L, 17.5″ Axle

Axles - Lift Axle

Flatbed
Part Numbers: 230L, 250L, 300L; 13K Steerable

Drop Deck
Part Numbers: 230L, 250L, 300L; 17.5″ Axle

Axles - Multi-Axles (Shown: 4-Axle Wide)

Choice varies to suit customer needs
Part Numbers: 23K, 25K, 30K, 230L, 250L, 300L; 13K Steerable

Coil Racks - Mini Coil Package / Full Coil Package

Mini Package
Part Number 200181 x 6

Full Package
Part Number 200181 x 12

Coil Racks - Suicide Coil Rack

Suicide Rack
Part Number 201691 for 96″ Wide Trailer
Part Number 201696 for 102″ Wide Trailer

Shotgun
Part Number 201661 (60″)
Part Number 201686 (84″)

Mini
Part Number 200695 (6.5″)

Requires 4 wood nailer floor option. Also available as Shotgun and 6.5″ Mini.

Connectivity - 4-Way or 7-Way Auxiliary Plug Options for the Front of the Trailer

7-Way Socket — Part Number 500713
7-Way Socet ISO — Part Number 500714
4-Way Receptacle — Part Number 500606
Emergency Gladhand — Part Number 450041
Service Gladhand — Part Number 450042

Deck - 3 Wood Nailer (Standard)

Part Numbers vary with nailer length and width

Deck - 4 Wood Nailer w/ Center Tiedown Track

Part Numbers vary with nailer length and width
Also available with no Tiedown Track.

Deck - All Wood Floor

Part Numbers vary with trailer length and width

Deck - Dock Plate

102″ Wide Trailer
Part Number 100612 (18″)
Part Number 100613 (22″)

96″ Wide Trailer
Part Number 100611 (18″)

Deck - DOT Bulkhead

102″ Wide Trailer
Part Number 224020-S (48″x10″)
Part Number 224620-S (48″x16″)
Part Number 224420-DOT (48″ Flat)

96″ Wide Trailer
Part Number 224060-S (48″x10″)
Part Number 224640-S (48″x16″)

Gladhands - Double Air and Electric

Emergency w/ Shut Off
Part Number 450110

Service w/ Shut Off
Part Number 450111

Lighting - Clear Lights (Complete)

Marker Light Amber
Part Number 4177CA-AMP

Mid Turn Amber
Part Number 4179CA-AMP

Marker Light Red
Part Number 4177CR-AMP

Stop/Tail/Turn
Part Number 4178CR-AMP

Corner Marker Light Red
Part Number 4881CR-AMP

Lighting - Dropdown Lights

2.5″ Round Short
Part Number 500212S

2.5″ Round Extended
Part Number 500212E

Mid Turn Short
Part Number 500200S

Mid Turn Extended
Part Number 500200E

Lighting - Sequential Turn Light

Part Number 4179-AMP

Lighting - Side Arrow Turn Signal Sign

Left Hand
Part Number 201510

Right Hand
Part Number 201511

Lighting - Telescopic Wide Load / Oversize Load Lights

Red/Amber
Part Number 420040

Amber/Amber
Part Number 420040-C

Lighting - 3/4" LED Light

Red LED
Part Number 177R

Amber LED
Part Number 177A

Load Security - Coil Post Pocket

Part Numbers vary according to customer needs

Load Security - D-Ring (Bolt-On)

Part Number 49215-SM

Load Security - In-Floor Chain Tie-Down

Part Number 203020-S

Load Security - In-Floor D-Ring

Part Number 203020-S

Load Security - J-Hook Tie Downs – Oval

6″ – Part Number 200119

9″ – Part Number 200119-9

Load Security - J-Hook Tie Downs - Triangle, shown with Standard Siderail

6″ – Part Number 200119T

9″ – Part Number 200119-9T

Load Security - Rope Hooks (Bolt-On)

Part Number 201526-C

Load Security - 45 Degree 3 Bar Side Winch (Bolt-On)

Part Number 48101

Load Security - Side Winch (Recessed)

Part Number 200631

Load Security - Sliding D -Ring

Part Number 49210

Load Security - Sliding Drop Hook

Part Number 49768

Load Security - Strap Retainer

Part Number 200686

Neck - 7-Inch Low-Profile

Part Number varies with KP Setting

Raised Wheel Well

Part Numbers Vary for Splash Guard Wheel Well

Rear End - B-Train Aluminum Rear

Part Numbers vary according to customer needs

Rear End - Beaver Tail (4-Ramp Set Shown)

4-Ramp Set (Shown)
Part Number 206054

2-Ramp Set
Part Number 206052

Rear End - Beaver Tail (4-Ramp Set Shown)

4-Ramp Set (Shown)
Part Number 206054

2-Ramp Set
Part Number 206052

Rear End - Bumper Guards

Short Bumper Guard
Part Number 600011

Long Bumper Guard
Part Number 600021

Rear End - Fleet Rear End

Part Number varies according to the fleet customer

Side Rail - DOT Tape

Part Number 464-REIT

Side Rail - Oregon Anti-Spray

(Shown with optional Bolt-On Winches and Bolt-On-Hooks)

Part Number 201651-8

Side Rail - Standard

Part Number varies with trailer length

Side Rail - West Coast

Part Number varies with trailer length

Storage - Cam-Lock Tool Box

Flatbed
Part Number TAS-2312U-LOCK (24″x24″x60″ – Aluminum)
Part Number TAS-2312U-SS-LOCK (24″x24″x60″ – Stainless Steel)

Drop Deck
Part Number TAS-2395U-LOCK (Aluminum)
Part Number TAS-2395U-SS-LOCK (Stainless Steel)

Storage - Certification Holder

Part Number varies according to customer need

Storage - Dunnage Rack - Open Cross

Part Number 201524-K-LRG

STORAGE - END CAP DUNNAGE RACK

Dunnage Rack Side Left End Cap
Part Number 201523-L

Dunnage Rack Side Right End Cap
Part Number 201523-R

Dunnage Rack Bottom Tray – Open (105L x 24D)
Part Number 201557-105

Dunnage Rack Bottom Tray – Open (96L x 24D)
Part Number 201557

Storage - Standard Dunnage Rack

As shown
Part Number 201524-PK

Expanded Mesh
Part Number 201524-MK

Open
Part Number 201524

Storage - J-Hook Tie Downs Holder

Part Number 200614

Storage - Snow Chain Hangers

Standard
Part Numbers 2015390L and 2015390R

Short
Part Numbers 20153980L and 20153980R

Storage - Spare Tire Carrier Rack

Part Number 600030
(Full Install Kit)

Storage - Standard Aero Tool Box

Flatbed
Part Number TAS-2312U (24″x24″x60″ – Aluminum)
Part Number TAS-2312U-SS (24″x24″x60″– Stainless Steel)

Drop Deck
Part Number TAS-2395U (18″x24″x60″ – Aluminum)
Part Number TAS-2395U-SS (18″24″x60″ – Stainless Steel)

Storage - 19.5 Dunnage Rack

Part Number 201552-KEANE
